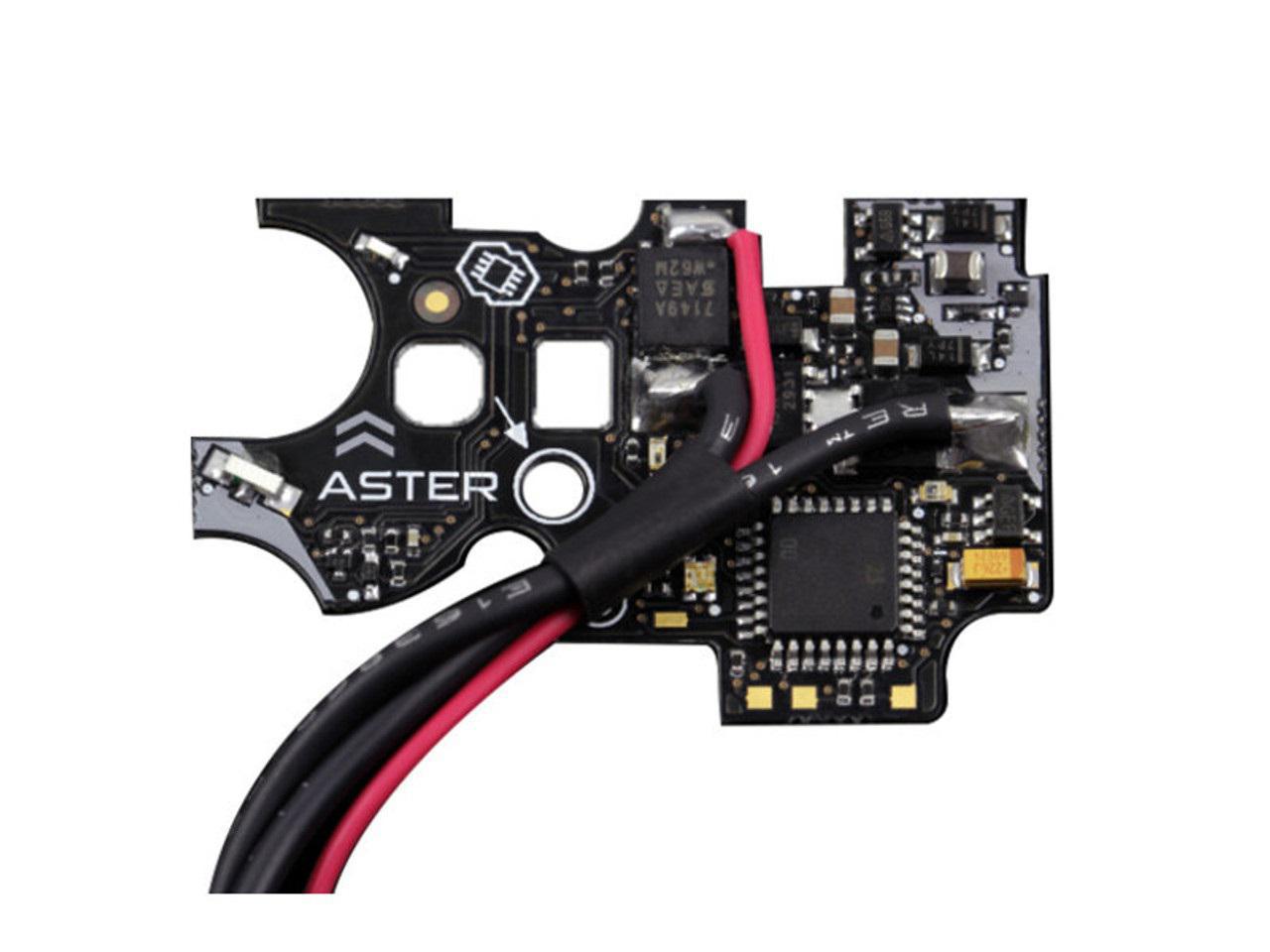

Gate Aster V2 Rear Wired Basic

Features

• The most advanced MOSFET module Gate has produced so far
• App-based control station gives you total control for your AEG
• Conformal coating (Military Specification MIL-V-173C) resistance to atmospheric conditions
• Optical sensors for detecting gear cam, trigger and selector position
• Programming via trigger allows configuration of basic functions. LED colors and vibrations indicate settings
• BASIC firmware edition: The best for those who prefer simplicity but require highest quality. Economic version with limited number of functions
• Multiple adjustable options include; fire selector modes, pre-cocking, ROF control, low battery warning, active braking

ASTER V2 is a younger brother of well-known TITAN V2. This world's first 4th generation AEG Control System is destined for V2 gearboxes (including stock, low- and mid-tuned) and even for high-tuned guns (in case of EXPERT firmware). It was designed to achieve maximum reliability at attractive price and hence it has extremely profitable price-performance ratio. Transform your AEG by replacing trigger contacts with computerized controller equipped with innovative optical sensors. Gain a unique tactical advantage thanks to the extremely fast trigger response and lots of other useful functions. ASTER's smart fuse protects your AEGs battery, motor and the controller, even in case of reverse battery connection. This feature, along with the optical sensors, makes ASTER the most durable drop-in unit on the market. You choose how to configure ASTER - simply via trigger or through USB-Link / Blu-Link* and our advanced GCS app. To enjoy full potential of ASTER, you can upgrade its firmware to ADVANCED or EXPERT.

Disclaimer: Manufacture of this product requires all owners of this MOSFET Module to update your firmware to the latest version upon receiving the product and periodically. Failure to do so can result product mal-function and injuries. Usage of radios with excessive power output beyond EU / USA legal limits can cause the rifle to fire when it is not on safety. If you do not have the USB link you may purchase here: https://www.evike.com/products/67118

What makes ASTER so special?

• Protection against battery reverse polarity
• Proximity trigger sensor which offers even 250 possible sensitivity settings
• Option to configure its main settings simply via trigger or completely through GATE Control Station app for Android, Windows and macOS (also for iOS in 2020 after Bluetooth adapter release)
• Built-in RGB led makes programming easier
• Removing of safety lever is not required
• No modification of gearbox shell needed, even in case of KRYTAC* and ICS (*when bolt catch lever is removed. This applies to ASTER R1. Next ASTER revisions will be fully compatible with KRYTAC gearbox)
• Optical gear cam sensor supports all types of gears: Infinite Torque-up, DSG, SSG, 19-tooth and standard
• Binary trigger function as basic function
• Premium level functionality at fair price extremely profitable price-performance ratio
• GCS app allows for making firmware updates via the internet, what enables improvements

GATE Control Station app

ASTER and GATE Control Station give you total control of your AEG. The GCS offers you the option to:

• Control your Airsoft gun from smartphone with Android (also with iOS in 2020 after Bluetooth adapter release) and PC with Windows or macOS)
• Simply adjust the ASTER settings
• Update and upgrade firmware
• See the BB counters and Meter statistics
• Perform diagnostics and send reports

Manufacturer: GATE

Specifications:

Compatibility: Fits most Version 2 Airsoft AEG gearboxes
Wiring Direction: Rear Wired
Maximum Operating Voltage: 12.75 V (LiPO 11.1 V)
Minimum Operating Voltage: 3 V
Absolute Maximum Voltage: 17 V
Package Includes: ASTER Module with BASIC firmware edition, ASTER Patch, "Programming via Trigger" Card, Installation Guide, Quickstart Guide


How to update firmware:
-plug Aster battery connector into USBlink and connect USB into Cell phone or PC with the GCS app installed
-Go to Status panel and select the most current firmware version
-if not already installed, click "update". this process should take ~2 min to install. all of your previous settings will be saved

NOTICE! In order to configure ASTER via GCS app, you need the USB-Link or Blu-Link which is not included in the kit.

CLICK HERE for Instruction Manuals
CLICK HERE for an easy breakdown of the differences between the ASTER and the TITAN
