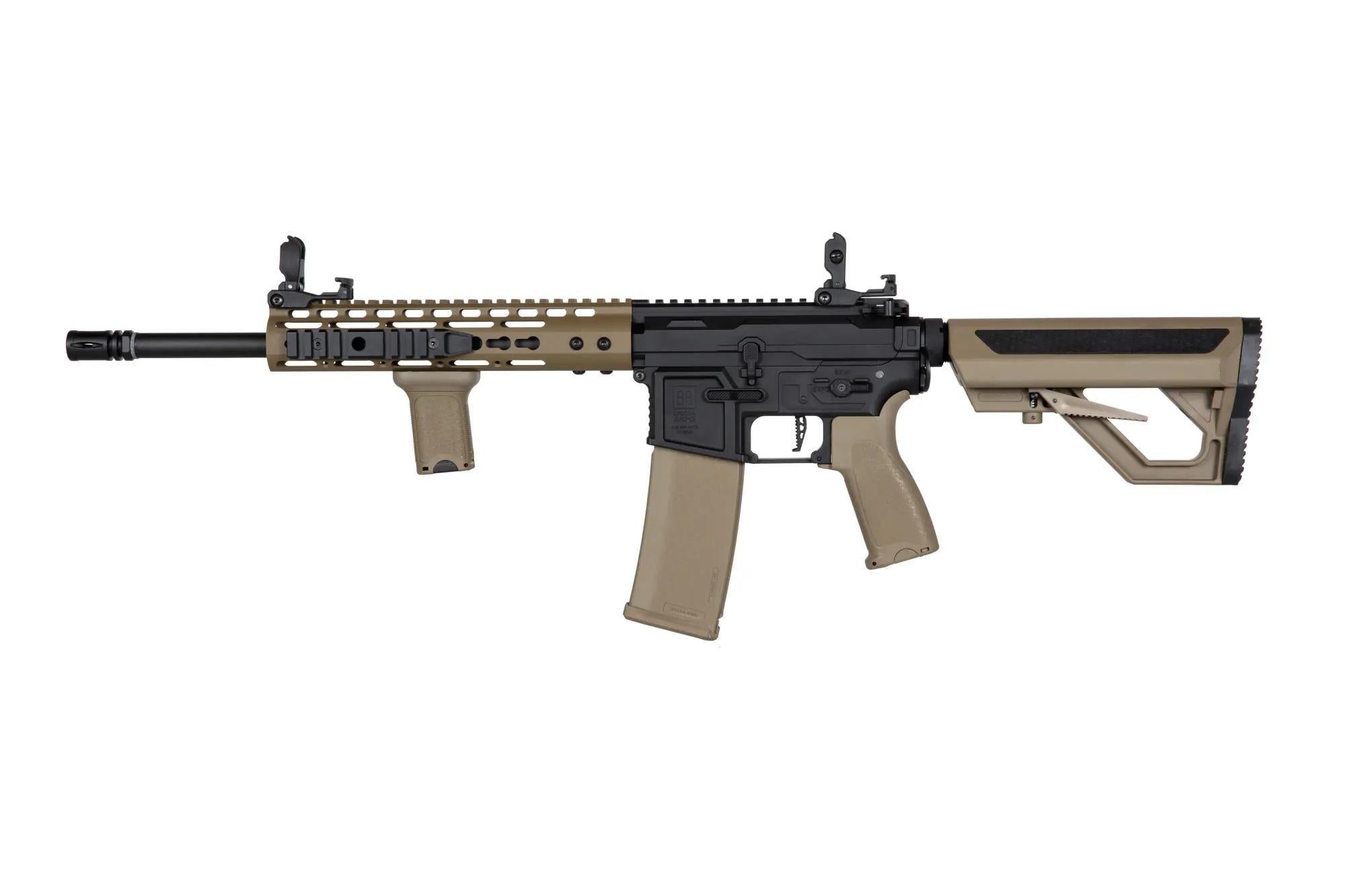

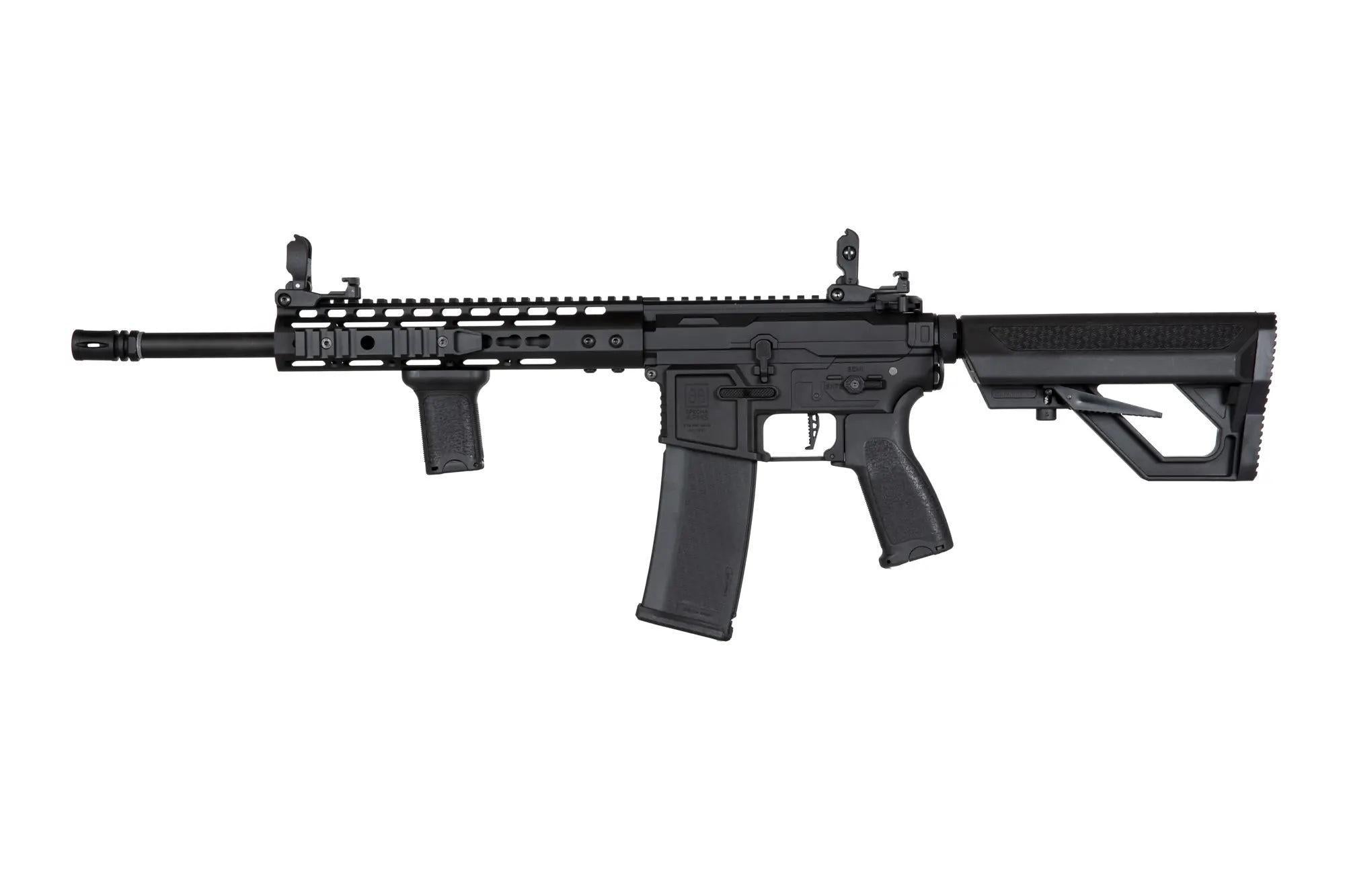

SA-E09 EDGE 2.0™ Carbine Replica
SA-E09 EDGE 2.0™ Carbine Replica
SA-E09-RH EDGE 2.0™ Carbine Replica Heavy Ops Stock
The EDGE ™ is a series of Specna Arms replicas that combines a wide range of innovative solutions that are difficult to find in other replicas currently available the market. The series focuses on a very good external build, solutions increasing the replica's versatility, longevity, facilitating failure diagnostics, and susceptibility to power tuning. Straight out of the box you will get a replica in which you won’t have to make any kind of modifications, unless you want to - which will be remarkably simple.
The receiver is an original Specna Arms design combining an interesting aesthetic with high ergonomics. Each and single element of the replica has been made and fitted with a very high attention to every detail. The replica comes equipped with a double-sided fring selector, a magazine release button and a steel sling swivel n addition, the receiver was finished with Nano Coating to prevent any scratches.
The replica is equipped with an adjustable Heavy Ops stock. The Heavy Ops stock comes equipped with an enlarged stock foot and rubber panels with non-slip texture. The design of the stock itself has been enlarged, so that it easily houses high-capacity batteries, while maintaining the ergonomic shape.
The SA-E09-RH carbine replica comes equipped with a front rail with a KEYMOD mounting system. There are short sections of RIS rails on the sides and under the barrel. The barrel is finished with a standard muzzle device. Foldable mechanical sights were placed on the top RIS rail.
The replica has a build in 6.03 mm diameter internal precision barrel, which will ensure perfect accuracy and precision of shots. A new type of rotary Hop-Up chamber is compatible with the precision barrel, which allows for more precise and stable adjustment of the BB’s precision and accuracy.
The Helium ™ Flat Hop bucking, which was installed in the replica, will improve the stability of the BB’s and make the shots even more accurate.
The replica features a quick spring change system, ESA2 ™. The system allows for a quick and efficient adjustment of the replica's power to the requirements in the field of play, without the need of tool usage - just unscrew the stock guide to reveal the access to the spring, without having to remove or disassemble the gearbox.
The advantages of the ESA2 ™ system cannot be overestimated. The ESA2 ™ system allows you to quickly, with little to no effort change the main spring, and thus adjust the muzzle velocity of the replica to the requirements of the game organizer. This guarantees an ideal compromise between the effectiveness of firing your shots and your own safety and the safety of other players. The whole set also includes a second M90 main spring, which is perfect for indoor games.
The ESA2 ™ system is covered by the European Patent No. 007422159-0001
The heart of the replica is the ORION gearbox based on a reinforced chassis and equipped with the main spring release function. The replica straight out of the box has a number of very high-quality parts, thanks to which it maintains a very good work culture and is prepared for further tuning. ORION Gearbox is made to work with M140 springs. Inside the replica there are such elements as:
- reinforced polymer piston made of steel
- light, polymer, double-sealed piston head with bearings
- aluminum, sealed nozzle
- aluminum, double sealed cylinder head
- a spring guide with bearings
- a set of steel gears
- 8mm ball-bearing
The replica also uses a powerful and efficient High Torque motor equipped with strong neodymium magnets. The motor has a 22TPA (Turn Per Arm) winding and can easily handle springs stronger than those included in the set.
The ASTER ™ system is the little brother of the well-known TITAN ™ unit. This fourth generation of AEG control systems has been designed for the majority of electric replicas equipped with the V2 gearbox, including those that are heavily tuned. ASTER ™ will allow you to achieve maximum reliability at an affordable price. This system is characterized by an extremely favorable price-performance ratio.
Thanks to the ASTER ™ system, you can improve the replica by replacing the contacts with an advanced controller equipped with innovative optical sensors, which offers up to 250 trigger sensitivity settings. Quick response to the trigger and many other useful functions will allow you to gain an advantage on the airsoft battlefield. A smart eletric fuse protects the battery, motor and controller, even with reverse battery connection. This feature, coupled with the optical sensors, make ASTER ™ the most durable drop-in chip on the market today.
ASTER ™ opens up new possibilities:
- protection against battery reverse polarity
- innovative optical sensors
- 250 trigger sensitivity settings
- possibility of configuration using the replica's trigger or the GATE Control Station application
- built-in RGB LED for easy system programming
- premium functionality at a fair price
The EDGE 2.0 ™ replica series has a dedicated trigger, called the Solar ™ Trigger that works perfectly with the sensors of the ASTER ™ system, offering unprecedented sensitivity and precision. The new Specna Arms trigger is licensed from the Gate Quantum Trigger ™.
Note! Some functions of the ASTER ™ system are available in the GCS (Gate Control Station) application, which requires USB-Link (not included - purchased separately).
Full system description: https://www.gatee.eu/pl/produkty/aster/ast2-pl
ASTER ™ user manual: https://www.gatee.eu/download/aster-v2-quickstart.pdf
The replica comes with two S-MAG mid-cap magazines with a capacity of 125 BB’s each. The S-MAG is an exclusive polymer magazine designed by Specna Arms. The characteristic texture of the Specna Arms logo on the magazines is something noteworthy. S-mag ensures trouble-free feeding of BB’s, even at high ROF.

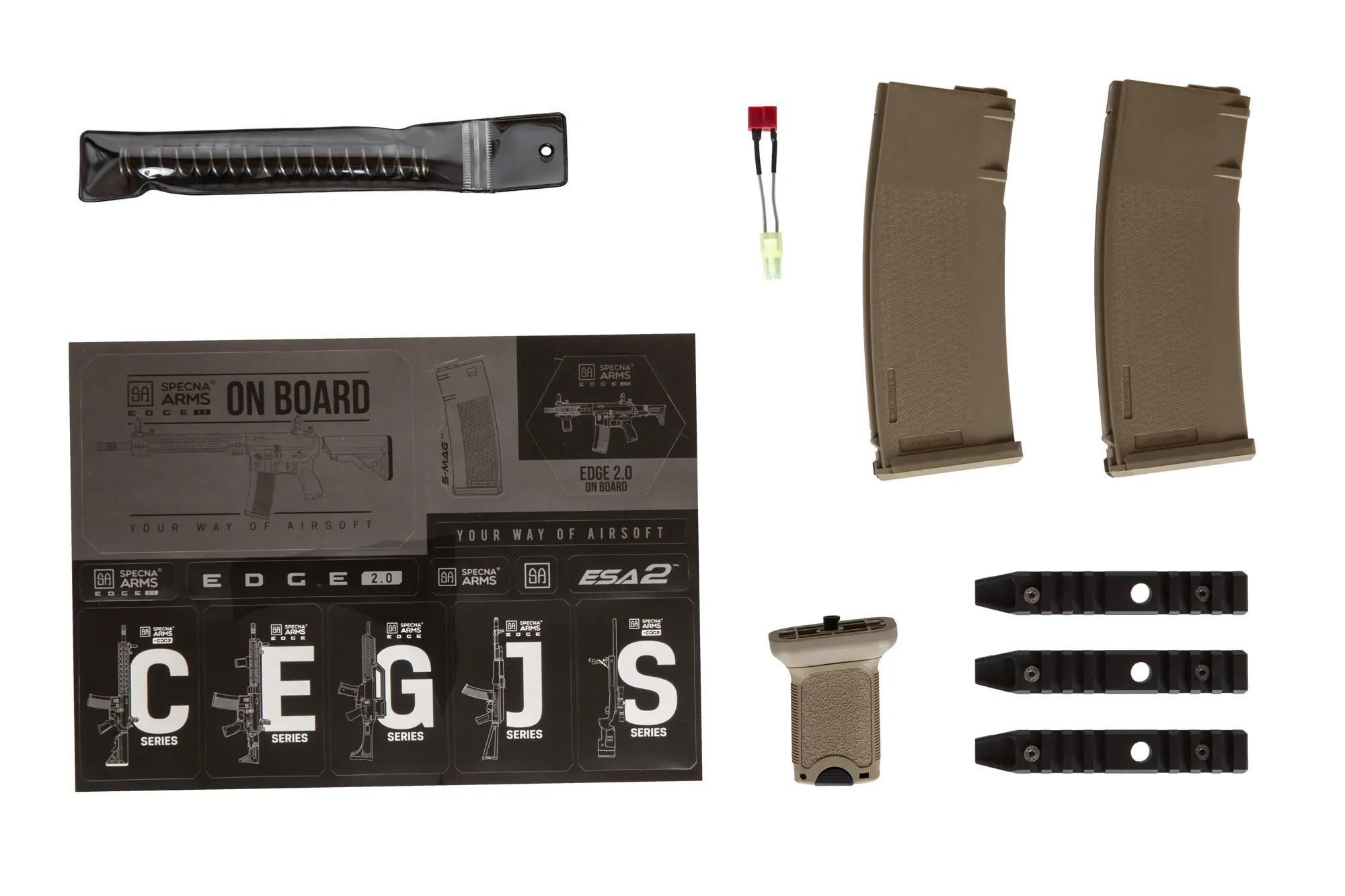

- 2 x mid-cap S-MAG magazine
- QC certificate
- GATE ASTER diagnostic card
- M90 additional spring
- Vertical Grip
- The set does not include the battery nor charger
